698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter

Mindestbestellmenge:	5 Stk
Preis:	negotiable
Zahlungsmethode:	D/A, L/C, D/P, T/T
Supply Capacity:	1500 Stück pro Tag

Detailinformationen

Produkt-Beschreibung

Detailinformationen

Herkunftsort

CHINA

Markenname

Vinncom

Zertifizierung

ROHS ISO9000

Modellnummer

VN-PD-0727-SMA2

Frequenz:

698-2700 MHz 2-Wege-SMA-Buchse Wilkinson-Splitter

Stecker:

SMA-weiblich

Farbe:

Maßgeschneidert

OEM/ODM:

Akzeptabel

ROHS:

Einhaltung

Produkt-Beschreibung

698-2700MHz 2Way SMA Female Wilkinson Splitter

Insertion Loss
Widely used for In-building Solutions
Indoor

The Wilkinson Power Splitter is a fundamental passive radio-frequency (RF) component.

Its primary role is to split an input signal into two or more output signals with equal phase and amplitude,

while providing high isolation between the output ports. In mobile communications,

the Wilkinson Splitter is critical for efficiently distributing RF power across multiple

paths without degrading signal integrity.

Part Number	VN-PD-0727-SMA2
Operating Frequency ( MHz )	698-2700
Impedance ( Ohm )	50
VSWR	≤1.25
Isolation(dB)	20
Split Loss (dB)	≤3.0
Insert loss(dB)	≤0.4
Application	Indoor
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	SMA Female
Handling Power (Watt, max)	IN to OUT 50W/0UT to IN 2W
Peak Power (Watt, max)	200

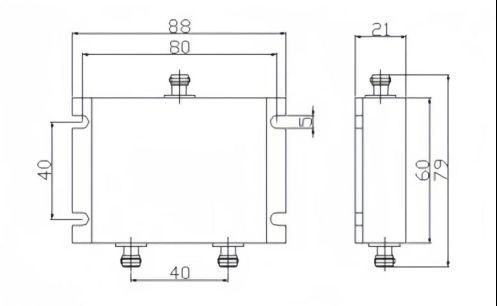

Dimension (mm)(L×W×H, excl connector)	804021
ROHS Compliance	Yes

698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter 0

Tags:

Produits

Mindestbestellmenge:	5 Stk
Preis:	negotiable
Zahlungsmethode:	D/A, L/C, D/P, T/T
Supply Capacity:	1500 Stück pro Tag

Detailinformationen

Produkt-Beschreibung

Detailinformationen

Herkunftsort

CHINA

Markenname

Vinncom

Zertifizierung

ROHS ISO9000

Modellnummer

VN-PD-0727-SMA2

Frequenz:

698-2700 MHz 2-Wege-SMA-Buchse Wilkinson-Splitter

Stecker:

SMA-weiblich

Farbe:

Maßgeschneidert

OEM/ODM:

Akzeptabel

ROHS:

Einhaltung

Min Bestellmenge:

5 Stk

Preis:

negotiable

Zahlungsbedingungen:

D/A, L/C, D/P, T/T

Versorgungsmaterial-Fähigkeit:

1500 Stück pro Tag

Produkt-Beschreibung

698-2700MHz 2Way SMA Female Wilkinson Splitter

Insertion Loss
Widely used for In-building Solutions
Indoor

The Wilkinson Power Splitter is a fundamental passive radio-frequency (RF) component.

Its primary role is to split an input signal into two or more output signals with equal phase and amplitude,

while providing high isolation between the output ports. In mobile communications,

the Wilkinson Splitter is critical for efficiently distributing RF power across multiple

paths without degrading signal integrity.

Part Number	VN-PD-0727-SMA2
Operating Frequency ( MHz )	698-2700
Impedance ( Ohm )	50
VSWR	≤1.25
Isolation(dB)	20
Split Loss (dB)	≤3.0
Insert loss(dB)	≤0.4
Application	Indoor
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	SMA Female
Handling Power (Watt, max)	IN to OUT 50W/0UT to IN 2W
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	804021
ROHS Compliance	Yes

698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter 0
